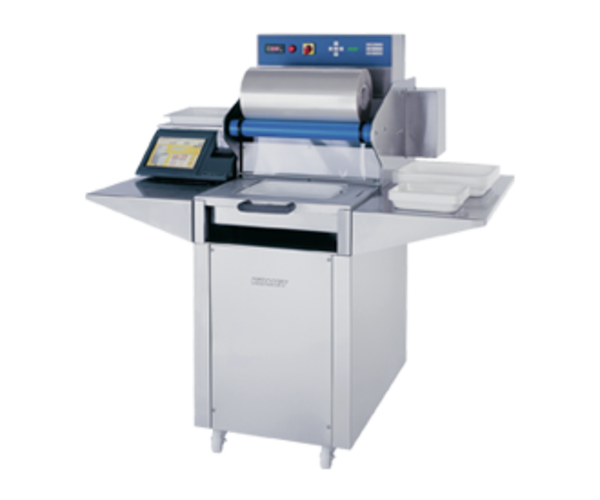

TS 100

The TS-100 is a professional, semi-automatic stand-alone tray sealing machine with vacuum and gas flushing (MAP) – also suitable for gas flushing with oxygen (optional). It ensures an optimal shelf life for the packed products with minimal gas usage. Offer your customers a fresh packing service and watch your sales grow.

Standard Equipment

• Made in Germany
• Stainless steel casing
• Powerful vacuum pump
• Vacuumstop button
• Electronic control board
• Inlet plates for height adjustment
• Plexiglas lid important when packing soups and sauces
• Semi-automatic packing with prefabricated trays with a sealable top film
  without vacuum or under vacuum with gas
• User-friendly, problem-free conversion to other additional tools
• Automatic film winding
• Easy, manual insertion of the trays in the sealing frame
• Easy change of sealing and cutting tool
• Simple replacement of the top film
• Vacuum pump built into mobile casing and protected against spraying water
• Automatic contour cut around each tray
• Manual insertion of the trays under the sealing tool, after which the trays are
  automatically vacuumed, gas-flushed, sealed and cut
• Compressed air sealing with high seal strength
• Filling plates for the vacuum chamber, achieving faster vacuuming and less gas usage.
• Sealing plate is temperature-controlled and Teflon-coated
• Safety protective covers on all moving parts

Options

• Vacuumpump: 63 cbm/h or 100 cbm/h
• Compressed air generator with pressure compensation tank
• Special voltages on request
• Gasflushing with oxygen
• Maximum depth of tray: 150 mm
• Other tray sizes possible
• Right and left stainless steel shelves
• Gas bottle holder
• Film feed accurate to the millimetre, thereby reducing film usage
• Photo cell for printed film with print marks
• Switch to change between two gasbottles
• Pressure reducer for N2/CO2 or O2

Standard tray sizes:
137 x 187 mm, 178 x 227 mm, 325 x 265 mm
